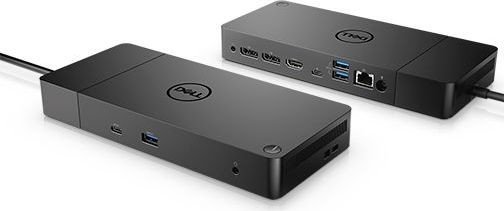

Dell Dock WD19

Description

Dell Dock WD19 Specifications
General Features:
-Power Delivery:
◦ Up to 130W (Dell laptops with USB-C)
◦ Up to 90W (non-Dell USB-C laptops)
-Video Output:
◦ 1x HDMI 2.0
◦ 2x DisplayPort 1.4
◦ 1x USB-C (DisplayPort Alt Mode, Video + Data)
◦ Supports up to triple Full HD (1920×1080) displays at 60Hz
◦ Supports dual QHD (2560×1440) displays at 60Hz
◦ Supports single 4K (3840×2160) display at 60Hz
-Ports & Connectivity:
◦ 1x USB-C (upstream, to host)
◦ 1x USB-C 3.1 Gen 2 (10Gbps, DisplayPort Alt Mode, Data + Power, 15W Output)
◦ 3x USB-A 3.1 Gen 1 (5Gbps)
◦ 1x USB-C Multifunction (Front, Data + Power, 15W Output)
◦ 1x RJ-45 Gigabit Ethernet (1GbE)
◦ 1x Combo Audio Jack (3.5mm, headphone/microphone)
◦ 1x Audio Out (3.5mm, Rear, for speakers)
-Network Support: Wired Gigabit Ethernet (1GbE)
-Security Features:
◦ MAC Address Pass-Through
◦ PXE Boot
◦ Wake on LAN (WoL)
◦ Kensington Lock Slot
-OS Compatibility: Windows 10/11, limited support for macOS and Linux
-Power Adapter: 130W external power supply
-Dimensions: 205 x 90 x 29 mm (8.07 x 3.54 x 1.14 inches)
-Weight: 585g (1.29 lbs)

Dell Dock WD19 – High-Performance USB-C Dock with 130W Power & Multi-Display Support

The Dell Dock WD19 is a versatile USB-C docking station designed for professionals needing fast connectivity, multi-monitor support, and reliable power delivery. With 130W charging (Dell laptops) and 90W for other brands, it supports triple Full HD, dual QHD, or a single 4K display at 60Hz via HDMI, DisplayPort, and USB-C. Featuring USB-C and USB-A ports, Gigabit Ethernet, and security features like MAC Address Pass-Through and PXE Boot, this dock is perfect for modern workstations, ensuring seamless productivity and efficient cable management.
