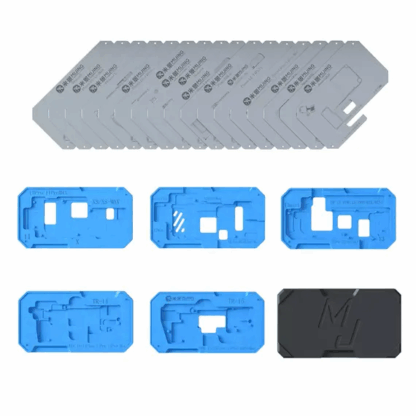

MiJing Z20 Pro BGA Reballing Fixture Tool Set – Complete Jig Platform for iPhone X to 15 Pro Max Motherboard Repair
The MiJing Z20 Pro is a comprehensive BGA reballing fixture tool set specially designed for precise iPhone X to iPhone 15 Pro Max motherboard repairs. Engineered for professionals, this high-precision jig ensures accurate positioning and secure BGA reballing without damaging sensitive PCB components.
Whether you’re working on iPhone logic board reballing or component-level repairs, the Z20 Pro platform offers a safe, efficient, and streamlined workflow—minimizing errors and improving rework quality.
Key Features:
🧩 Precision BGA Reballing Fixture: Custom-built for iPhone X through 15 Pro Max motherboard alignment and soldering.
⚙️ Secure Platform Design: Holds the mainboard firmly in place for consistent reballing results.
🔧 Step-by-Step Reballing Process:
Mount the iPhone X–15PM motherboard onto the fixture
Align and place the reballing stencil over the board
Spread solder paste evenly across the stencil
Remove the stencil cover carefully
Use a hot air gun to solidify the solder balls on the BGA pads
🚫 Damage-Free Repair: Designed to reduce the risk of misalignment or overheating during the process.
🔄 Reusable & Durable: Built from high-quality materials for long-term professional use.
The MiJing Z20 Pro is the ultimate solution for technicians performing BGA reballing on iPhone motherboards, combining precision, durability, and ease of use in one complete toolset.
