XZZ 4in1Motherboard Layered Test Fixture for iPhone 14/14Plus/14Pro/14ProMax

Description

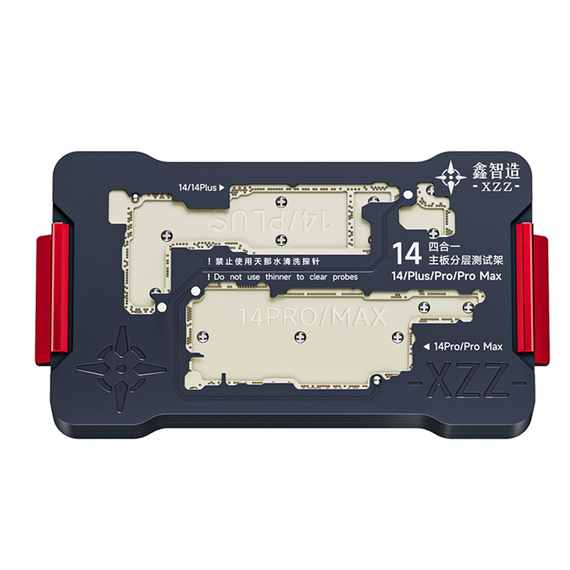

XZZ 4-in-1 Motherboard Layered Test Fixture – Compatible with iPhone 14 / 14 Plus / 14 Pro / 14 Pro Max

The XZZ 4-in-1 Layered Motherboard Test Fixture is a must-have diagnostic tool for professional technicians working on iPhone 14 series logic boards. Designed for quick and safe testing of upper and lower board layers, this fixture helps streamline the repair process and prevent unnecessary disassembly or damage.

Built for efficiency and accuracy, the fixture supports both boot testing and brush programming, giving you a comprehensive solution to check the motherboard’s integrity before committing to a full repair.

Key Features:
🛠️ All-in-One Design: Supports iPhone 14, 14 Plus, 14 Pro, and 14 Pro Max motherboard testing in one fixture.
⚡ Easy Layered Assembly: Simply insert the bottom board, align the pinboard, place the upper board, and secure with the test rack.
🧪 Dual Testing Modes:
Method 1: Connect screen flex, power cord, or battery to verify ink mark success and boot functionality.
Method 2: Use the end plug on the fixture base to enable brushing and data read/write functions.
✅ Pre-Check Before Repair: Identify faults early to avoid repeated disassembly and reduce the risk of damaging the logic board.
🧩 Precision Fit: Engineered for stability, accuracy, and convenience during diagnostic work.
Whether you’re doing board-level repairs or diagnostics, the XZZ 4-in-1 test platform ensures a safe, fast, and effective workflow for all iPhone 14 series models.
